TSD-850 Automatic Blade Bending Machine

Your current location：

Product

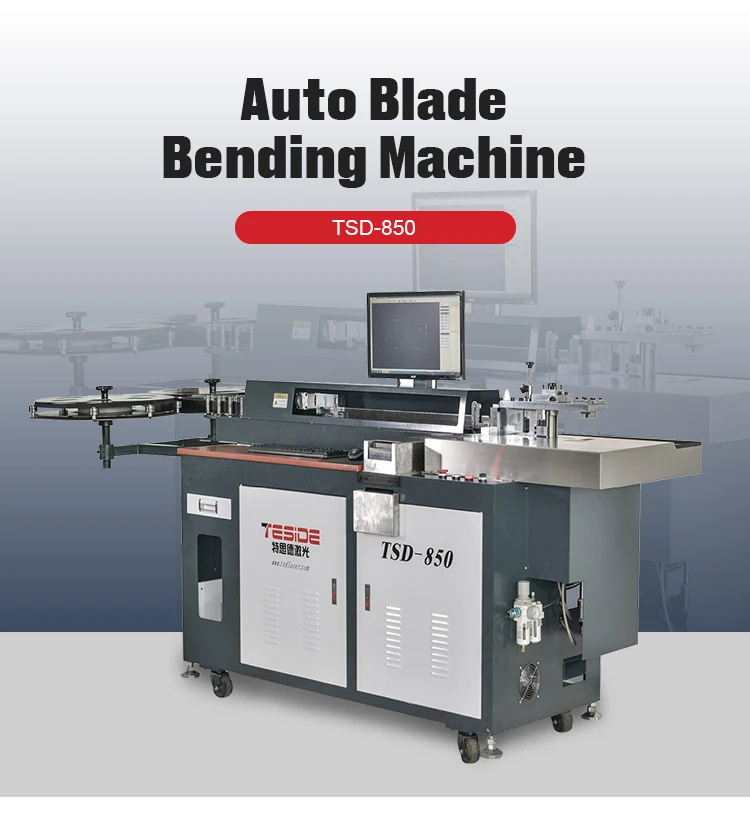

TSD-850 Automatic Blade Bending Machine

Product description

Features

Products Description

TSD-850 Automatic Blade Bending Machine (图1)

TSD-850 Automatic Blade Bending Machine (图2)

TSD-850 Automatic Blade Bending Machine (图3)

TSD-850 Automatic Blade Bending Machine (图4)

TSD-850 Automatic Blade Bending Machine (图5)

Product Paramenters

Model No.	TSD-850
Blade Thickness	Standard Size1.05mm,Optional 0.71-1.42mm
Blade Height	23.8-60mm
Max.Bending Angle	100°
Min.ARC Radius of 90°	0.4mm
Front Min. Bending Size	2.5mm
Back Min.Cutting Size	1.0mm
Feeding Precision	±0.03mm
Bending Flatness	±0.02mm
Total Power	1.3KW
Machine Weight	500KG
Overall Dimension	270010501430mm(LxWxH）
Functions	Bending,Cutting,0utside Lipping,Bridge

Why Choose Us

We are professional die blade bending machine manufacturer:
 CE certificate, Reasonable price, machine stable, Experienced & Responsible QC  that you can rely on.
 We have exported our machine to Indonesia, Kosovo, Egypt, Sri Lanka, India, Philippines,  Bengal, Vietnam, Kuwait, Algeria....etc.
 Adequate supply capacity ( 50sets / month ), Punctual delivery time(2-3 Weeks) .
 Home market: Guangdong, Jiangsu, Zhejiang, Fujian, Hunan, Jiangxi, Shandong,  Sichuan, Henan, Shanxi, Shanxi, Beijing, Shanghai,Hebei, Inner Mongolia, Guangxi, HK ... Etc.
 Our affiliates in the country: East Division, Office of Hebei, Hangzhou Office, Office of Fujian

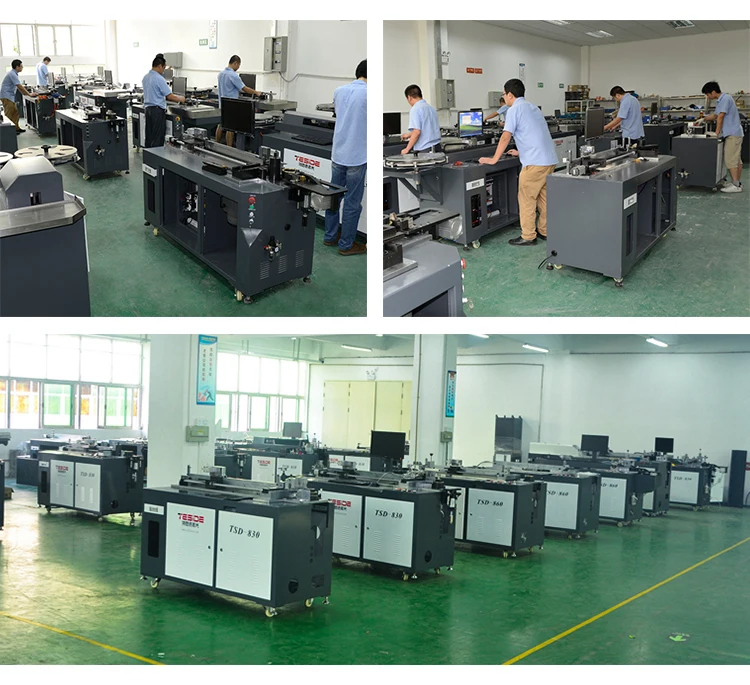

Company Profile

TSD-850 Automatic Blade Bending Machine (图6)

TSD-850 Automatic Blade Bending Machine (图7)

TSD-850 Automatic Blade Bending Machine (图8)

TSD-850 Automatic Blade Bending Machine (图9)

TSD-850 Automatic Blade Bending Machine (图10)

TSD-850 Automatic Blade Bending Machine (图11)

TSD-850 Automatic Blade Bending Machine (图12)

Our Service

Shenzhen TSD Laser Equipment Co., Ltd adheres to the customer-oriented service concept, providing complete installation,commissioning, inspection, training, maintenance and other pre-sales and after-sales service.
Pre-sales service:
We provide customers with a variety of services including production processes proposals, technical consulting, free sample making, equipment shape designing.Machine-installation & debugging:According the contract, our company will ship the equipment to the port of Shenzhen or domestic user specified location. Qualified technician will be send to customer’s company for machine installation and debugging. Under the proper circumstance, the technician will finish installation within three days. Please keep the installation place clean and tidy.
Training:
After machine installation and testing, qualified technician will be send to customer’s company for training (machine operation,machine maintenance, machine debugging, product sample processing, etc). TSD Laser also welcome our customers to come to Chinese headquarter for machine training. The training is free of charge and it will last at least 3 days until the operator of customers’ can use the machine properly and correctly.
Maintenance:
Complete and perfect after-sales service
One year warranty and lifetime maintenance for the equipment
Lifetime free of charge support and upgrade for hardware and software

Specification of TSD-850 Automatic Rule Bending Machine

Technical Parameter:

Blade thickness(mm)	0.71mm –1.05mm-1.42mm
Bending Blade height(mm)	23mm-60mm
Bridge size	Width is adjustable by software, height is adjustable by tool
Max. bending angle	100°
Min. ARC radius of 90 degree	0.5mm
Front Min. bending size	2.5
Back Min. cutting size	1.0mm
Feeding precision	±0.03mm
Bending flatness	±0.2
Functions	Bending, cutting/twist off cutting, bridge and manual lipping
Cutting methods	Twist off cutting or Auto flat cutting
Optimal pattern format	Dxf format (Auto CAD)
Air supply	0.6mpa
Power supply	380V 50/60Hz(Standard)
Machine total power	1.3KW
Gross weight.	550kgs
Overall dimension	2700×1050×1350mm(L×W×H)
H.S. Code	8462219000

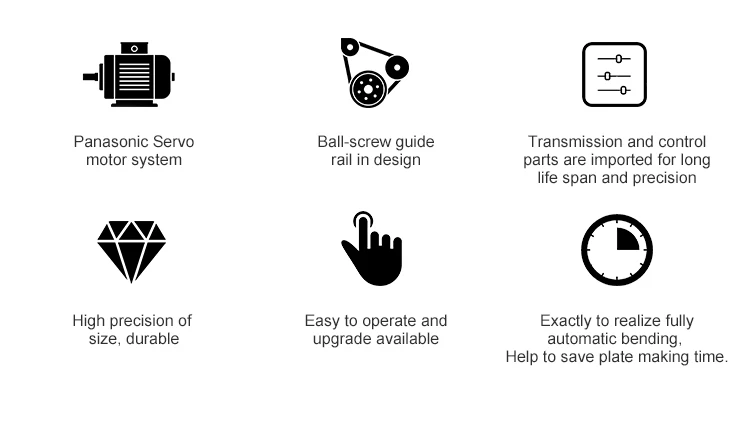

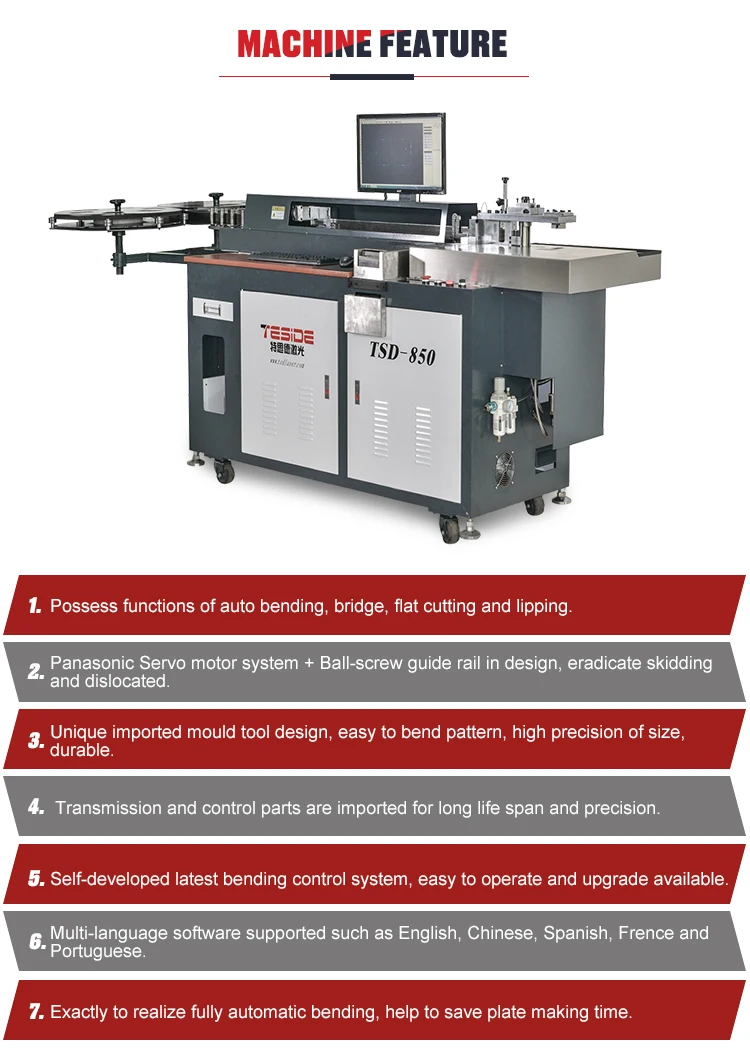

Functions and usage:

1. Possess of operation such as bending, cutting, bridge and pneumatic lipping functions.

2. Fuji servo motor system + ball-screw guide rail design, eradicate skidding anddislocated.

3. Unique imported mould tool design, easy to bend pattern, high precision of size, durable.

4. In order to guarantee precision and long-life span, transmission and control parts are imported.

5. Self-developed latest bending control system, easy to operate and upgrade available.

6. Fully English & Chinese interface, easy to learn how to operate, make bending work easy.

7. It can be installed soon after bending patterns form the machine, no need extra more hard work.

8. Exactly to realize fully automatic bending, help to save plate making time.

Picture for reference only.
