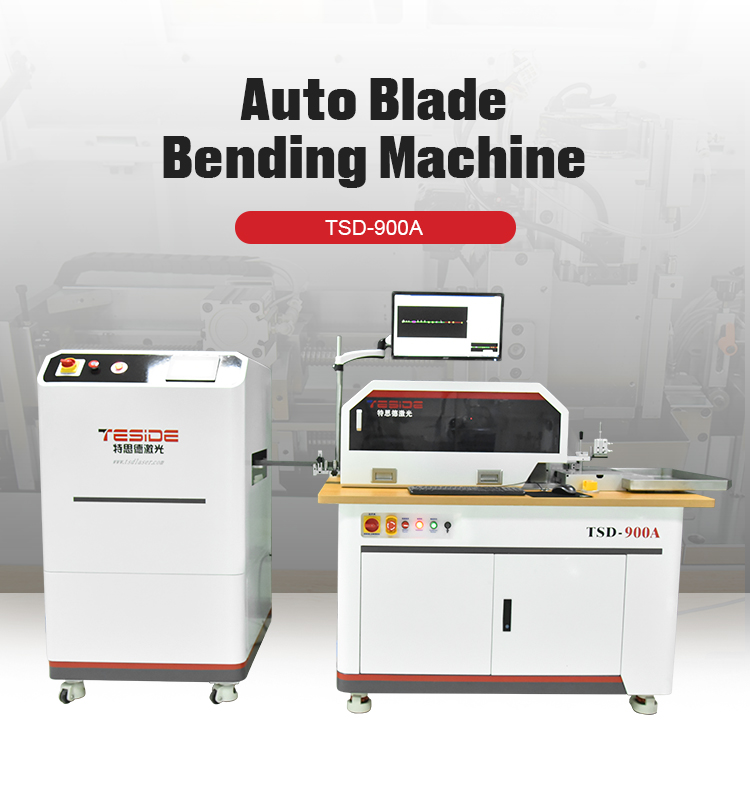

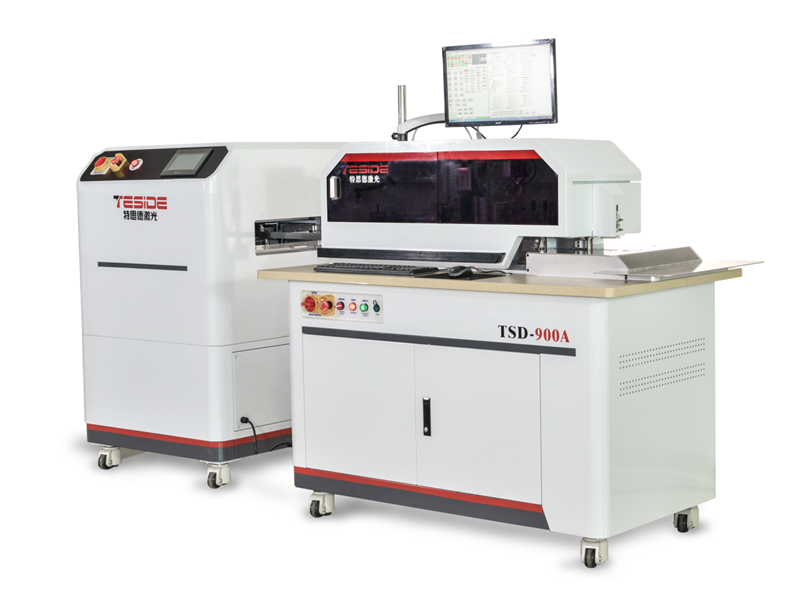

Specification of TSD-900A Automatic Blade Bending Machine
Technical Parameters
Model | TSD-900A |
Blade thickness(mm) | 0.71, 1.05 |
Blade height(mm) | 8 - 30 |
Max. bending angle | 100° |
Min. ARC radius of 90 degree | 0.4 |
Front Min. bending size | 1.0 |
Back Min. cutting size | 1.0 |
Feeding precision | ±0.03 |
Bending flatness | ±0.2 |

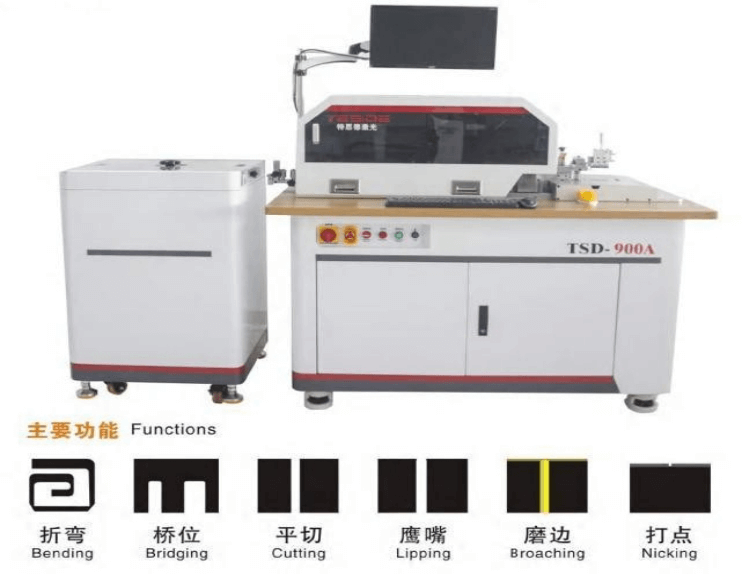

Functions | Auto bending, cutting, bridging, lipping, broaching, Nicking |
Optional functions | Perforating（W1xD2mm）, hole punching（hole dia is 5.5mm） |
Bridge width | Over 5 mm any sizes available |
Bridge height | 10-20 mm manually adjustable |
Cutting methods | Swing cutting or Auto flat cutting |
Support pattern format | DXF format (Auto CAD), DWG, AI |
Air supply | 0.6mpa |
Power supply | Three phases power 3800V 50/60HZ (Standard) |
Machine total power | 1.3kw |
Gross weight. | 500kgs |
Overall dimension | 1650 × 840 × 1350mm (L×W×H) |
H.S. Code | 8462219000 |

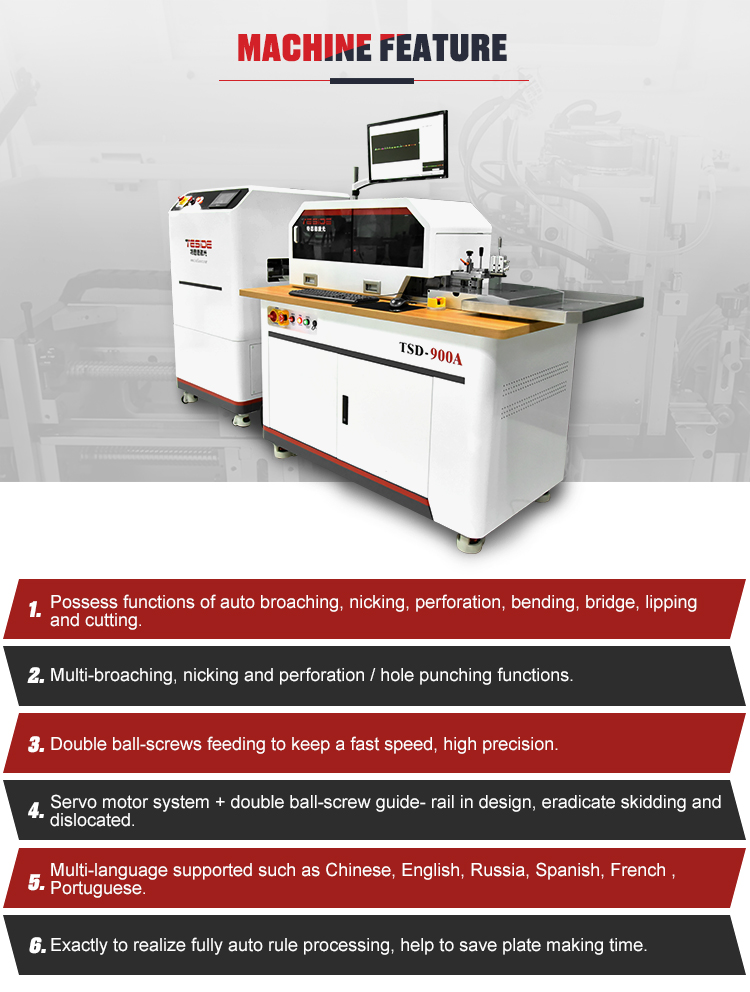

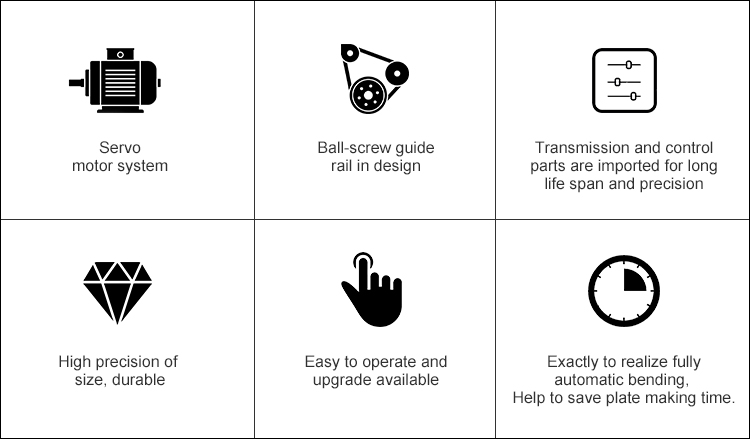

Machine’s Features:
1. Possess of functions such as bending, bridge, lip cutting, cutting, broaching, nicking, perforation functions.
2. Broaching parts are controlling with Panasonic Servo Motor with stable performance, high precision, and the smallest size of the front broaching can reach 1mm.
3. Double ball-screws feeding to keep a fast speed, high precision.
4. Fuji Servo motor system + double Ball-screw guide- rail in design, eradicate skidding and dislocated.
5. Unique imported mold tool design, easy to bend pattern, high precision of size,durable.
6. In order to guarantee precision and long-life span, transmission and control parts are imported.
7. The self-developed latest bending control system, easy to operate and upgradeavailable.
8. Fully Chinese, English, Russia, Spanish, French language software interface.
9. It can be installed soon after bending patterns form the machine, no need extra more hard work.
10. Exactly to realize fully automatic bending, help to save plate makingtime.
