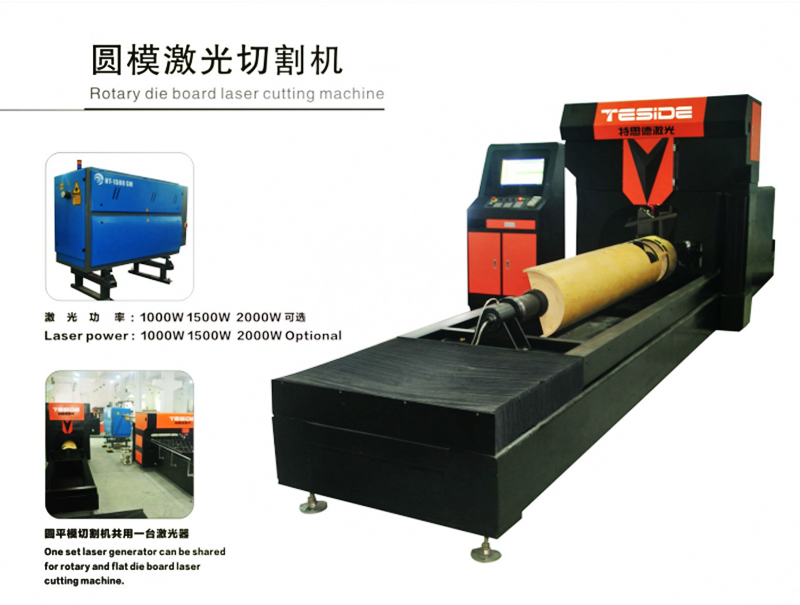

Rotary die board laser cutting machine

Rotary die board laser cutting machine
Rotary die board laser cutting machine

Rotary die board laser cutting machine(图1)

Rotary die board laser cutting machine(图2)

Rotary die board laser cutting machine(图3)

Rotary die board laser cutting machine(图4)

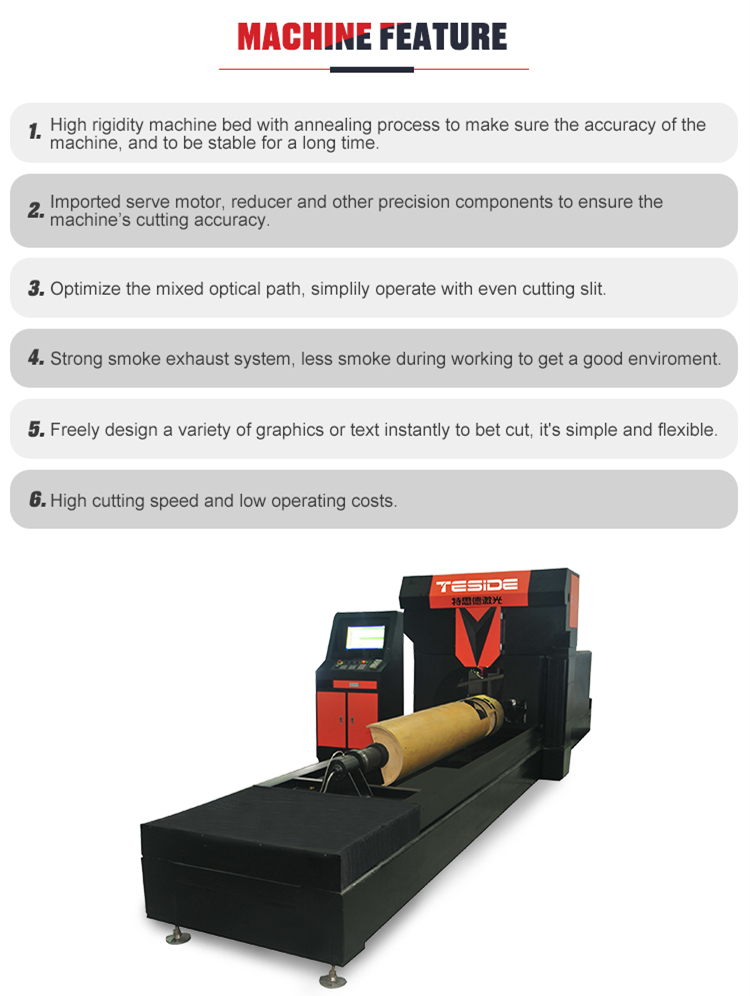

Performance
1. High rigidity machine bed with annealing process to ensure the accuracy of the machine, to
be stable for a long time.
2. Fully closed design, isolation of dust, no pollution.
Product Paramenters
Model No.
TSD-RC1000,TSD-RC1500,TSD-RC2000
Cutting Length
3000mm
Cutting Diameter
φ200-800mm
Cutting Width
1.42mm
Positioning Accuracy
0.1mm
Cutting Speed
20-25meters/hour for 13mm thickness rotary board
Machine Electricity:
380V 50Hz/60Hz 3Phases
Cutting Thickness
0.45mm, 0.71mm,1.05mm
Gas
Air compressor supported to blow dusty, no need air dryer
Numerical control panel
LCD screen, light-touched key-press computer
Software supported
Auto CAD drawing
Graphic format support
AUTO CAD DXF file
EMS memory
attached 32MB memory, can work under off-line condition
Knife Matching
Original 50 pieces
Assistant equipment
CW-3000 chiller, and air compressor.
Machine Weight
4000KG
Machine Overall Dimension
7800*1600*2000mm
Laser Power
1000W/1500W/2000W
Why Choose Us
We are professional dies machine manufacturer:
1.We only production co2 laser die cutting machine and its supporting die blade bending machine blade bending machine.
2. CE certificate, Reasonable price, machine stable, Experienced & Responsible QC that you can rely on.
3. We have exported our machine to Indonesia, Kosovo, Egypt, Sri Lanka, India, Philippines, Bengal, Vietnam, Kuwait,
Algeria....etc.
4. Adequate supply capacity ( 50sets / month ), Punctual delivery time(2-3 Weeks) .
5. Home market: Guangdong, Jiangsu, Zhejiang, Fujian, Hunan, Jiangxi, Shandong, Sichuan, Henan, Shanxi, Shanxi, Beijing,
Shanghai,Hebei, Inner Mongolia, Guangxi, HK ... Etc.
6. Our affiliates in the country: East Division, Office of Hebei, Hangzhou Office, Office of Fujian
